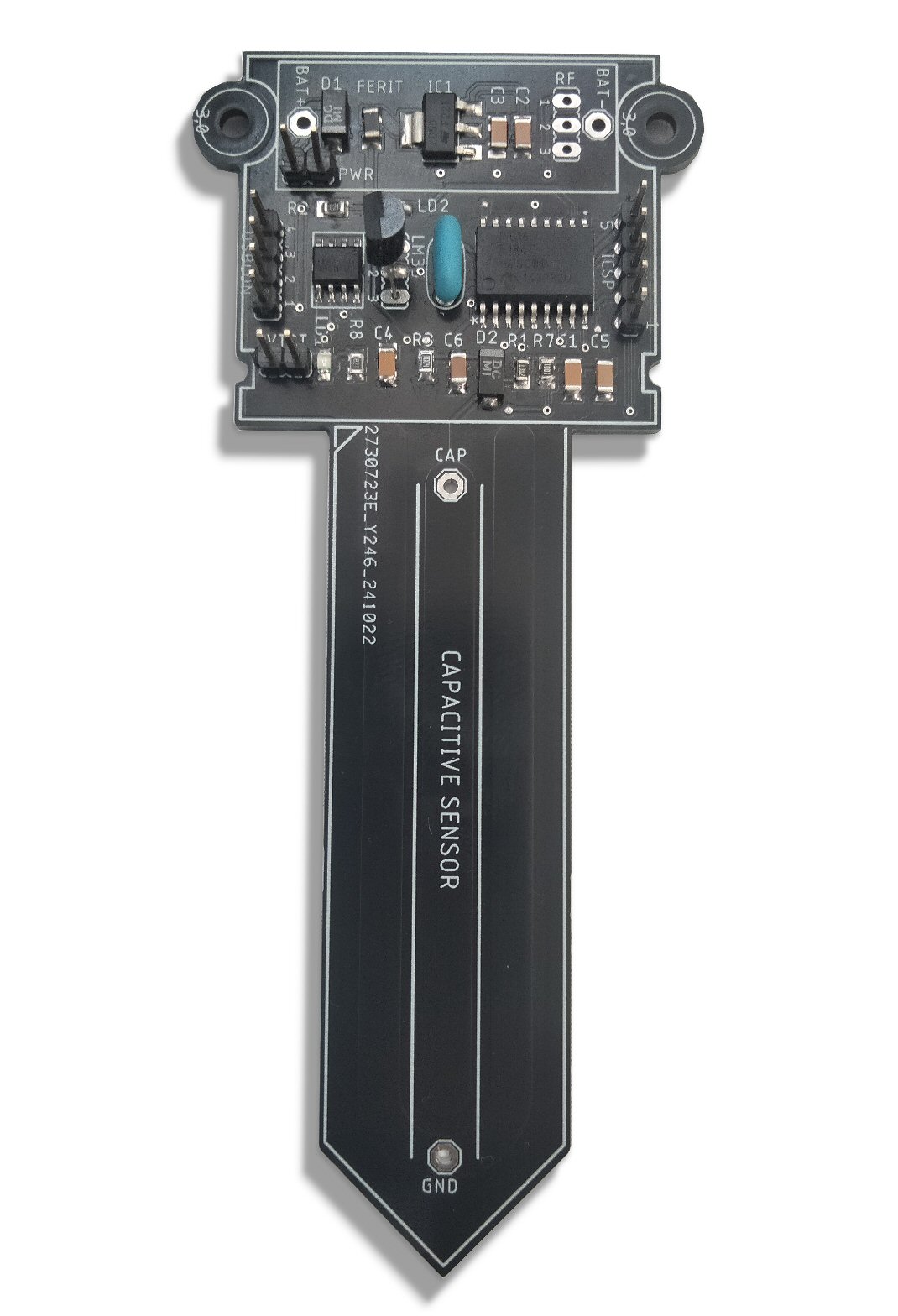

ESCA Soil Moisture Sensor | Capacitive
The ESCA product range is a series of automation products prioritizing agricultural, horticultural, and aquacultural applications. The Capacitive - Soil Moisture Sensor enables low maintenance, on point contact with the environment for measurement, data collection and collation.

Utilising the Capacitive method vs the Resistive method, the ESCA-SMS is designed for remote, low maintenance and long endurance operation. Equipped with a battery and an RF transmission module, the sensor is deployed in agricultural settings and then monitored via the SCALAE - GATEWAY. The Gateway functions as a central collation point for the sensors liked to it, collating the data for transmission to an online | inCloud repository.
Techncial Information
Specifications Soil Moisture Sensor
Sensory Type Capacitive
Power Supply Battery A12 | 2.54MM header for auxilary supply
USB Communication Yes, via proprietary cable | USB Powered capable
Device Software Proprietary code | ICSP provided for updates *
Input Voltage > 7Vdc | > 9 Vdc
MCU Device 18 PIN SOIC Device | PIC16F18xx Family
I/0 Input
  • Analog Capacitive Sensor
  • Temperature Sensor: LM35
Output
  • Status LED
  • RF Transmitter Interface
USB UART CHG340N
Purchase Options
* The ICSP interface is provided for proprietry purposes which the module is under manufacture. This can be used to install new firware of the user's creation.



ESCA SMS - what is it?
ESCA - SMS is a PIC Microcontroller based soil moisture management sensor. The module can be used in a standalone applications, cable interface or networked. The unit includes an RF interface and an integrated temperature sensor for moisture as a function of temperature calculations.
Features . . .

  • DC powered
  • USB-UART,
  • Extensible MCU enabling powerfull automation control
  •  Power LED
  • Capacitive Method sensory approach
  • User programmable with custom code
Capabilities
ESCA - SMS is designed to cater to agricultural automation applications.
Interface one or more sensors with the RF Transmission option to build a low maintenance network with the SCALAE Gateway.
Deploy Applications
Embedded applications range from standalone systems which control a single element, to wired or wireless applications interconnected for reporting and monitoring. ESCA - SMS is an ideal, cost effective and well supported tool with an efficient tool chain that will assist in completing projects and getting products to market.
Documentation Resources
Document Title REV Description
ESCA - Soil Moisture Sensor 1 - Original Release Technical document which describes the SMS, how to use the product and basic technical information.
