Retired Product
This product has been retired, with the contet remaining for information purposes only.
IOT - Ethernet

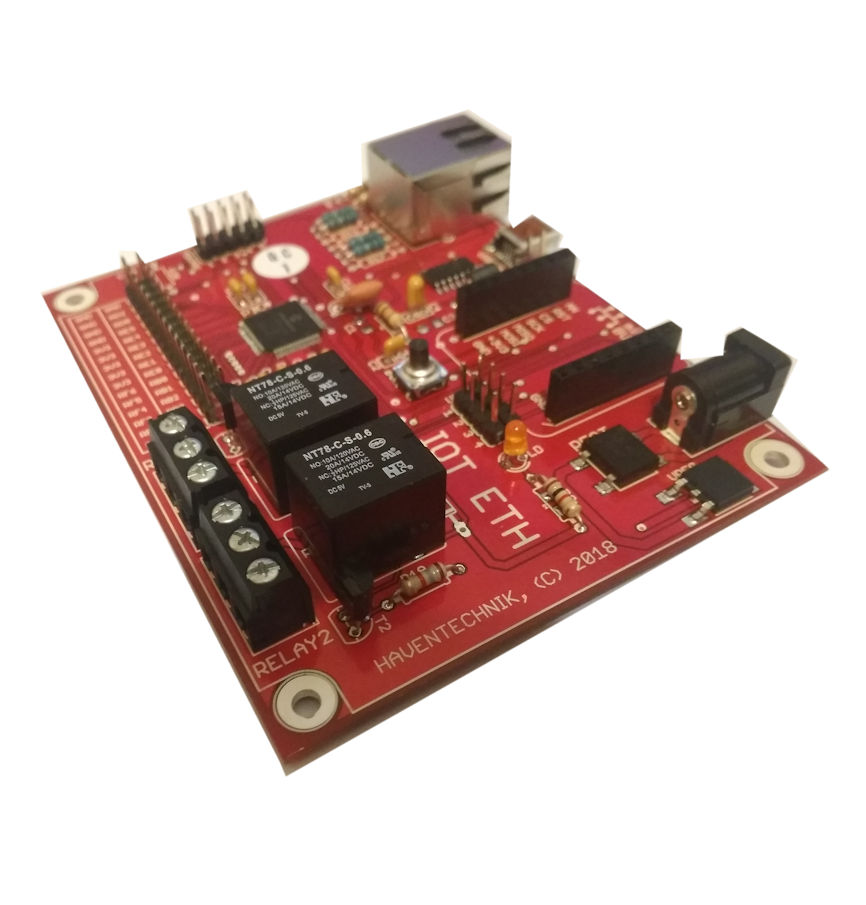

The IOT ETH is an IOT Development platform caters to developmeny of IOT orientated systems and products. The development board hosts a PIC18F67J60, which has an integrated ethernet controller.
This enables a developer to create an ethernet based IOT system with low pincount, and lower power consuption.
| Specification |
Details |
| Power Input |
DC: 7 Vdc <, reverse polarity protected |
| Power Operation |
3v3 or 5V0, Jumper selection 1 |
| Power Indication |
Power LED |
| PIC Device |
PIC18F67J60 |
| MikroBus |
1 Mikro Slots are available |
| PINs |
All PIC pins are tracked to the headers. PORTS A, B, C, D, E, F, G |
| Programming |
ICSP (Microchip standard, 5 PIN header),
MikroProg (MikroElektronika Programming tool) |
| Communications |
MCP2221, USB UART on UART 1 2 |
| RJ45 |
Standard Ethernet Connector |
| Relays (Actuators) |
2 Relays
Normally open, Normally Closed |
1 : Power supply opoeration dependant on the LD1117 installed.
2: Additional communication channels or types can be added using a mikroClick board.
|
