The H-MATIX Smart Relay is a drop in module bridging the gap between an I/O Board and a fully fledged PLC. Where the application requirement changes from standard input to output drive, the Smart Relay can make descisoins using a pre-configured set of responses to the input.

Power Requirement	DC V |
USB Powered Capable	YES
Device Programming	ICSP - PICKIT Programmer
3v3 | 5V0	YES
Input Voltage	> 7Vdc | > 9 Vdc
MCU	PIC16F1847-SOIC
LED | Reset Button	YES
Relay Drive	1 Relay (NO|NC)
Reccomended Device	Recomended Device Family
Communications	RF Send Recieve Modules (333MHZ | 433MHZ)
Purchase Options	Options Online Store Contact Us Product Catalogue About Us
Purchase from our store
RADIX DUO is bootloader capable, device dependant. All currency in ZAR, South African Rands

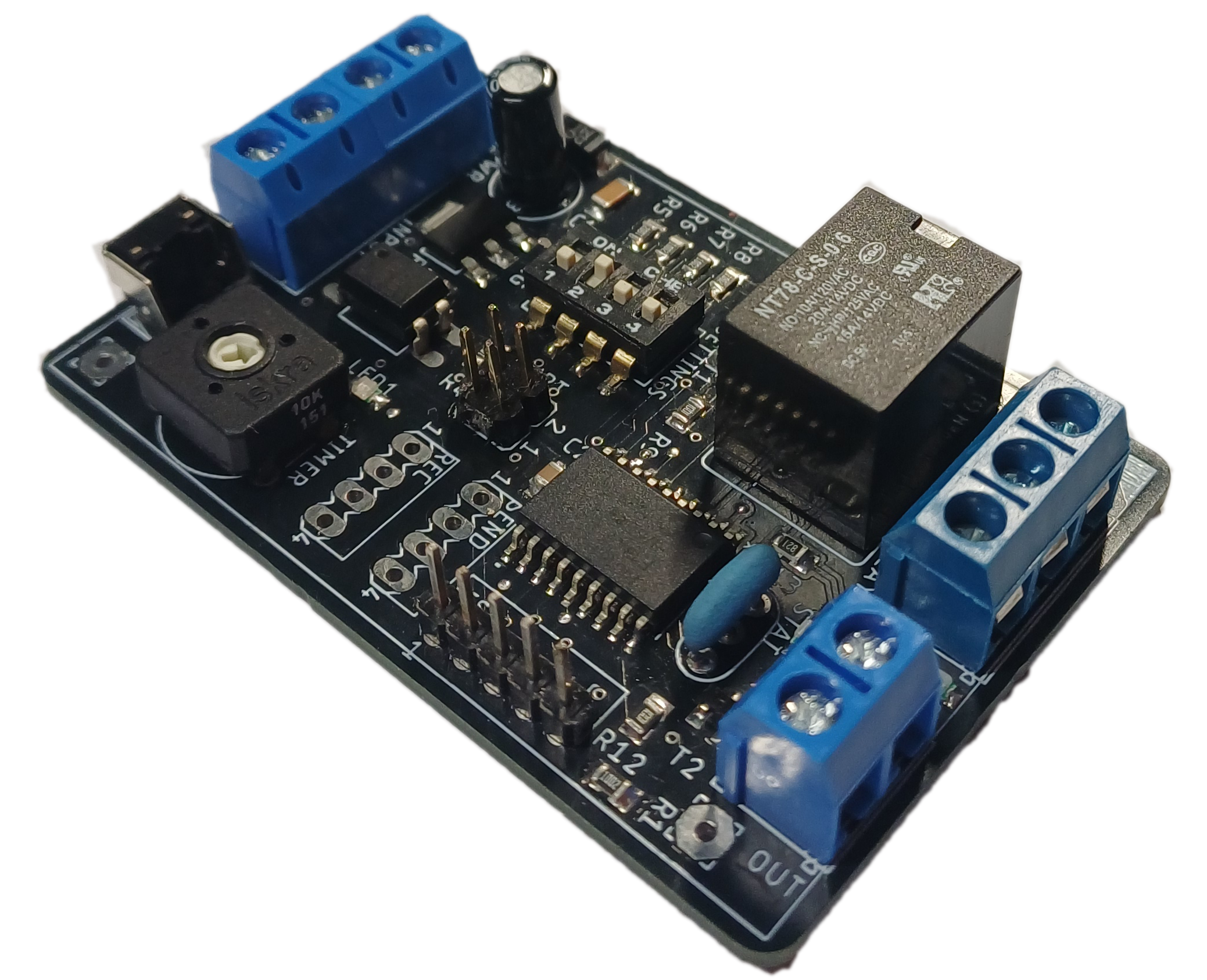

Smart Relay is a PIC Microcontroller based platform that is configurable, and the mode of operation is based on dipswitch settings. The PCB is designed to host the PIC16F1847 in SOIC Package. This family of PIC devices is highly capable with many on board peripherals, digital IO, A2D, Serial coms, etc

The module offers the following features:

• DC Power Input
• Opto-coupled input
• Relay drive output
• Operational Modes
• RF Communication
• LED Status indicators

H-MATIX Smart Relay is designed to cater to drop into existing applications to enhance the design or application's capabilities. The module is programmed with demonstration code, and the device can be reprogrammed to meet specific requirements.

Embedded applications range from standalone systems which control a single element, to wired or wireless applications interconnected for reporting and monitoring. HMATIX - SMART RELAY is an ideal, cost effective and well supported tool with an efficient tool chain that will assist in completing projects and getting products to market.

Document Title		Description
 How to use : HMATIX - Smart Relay		Overview document which outlines first steps to using the Radix Duo.
 Product Documentation		Hmatix - Smart Relay Product Documentation.
