RADIX  DUO |- Versatile PIC development PCB with multiple device options

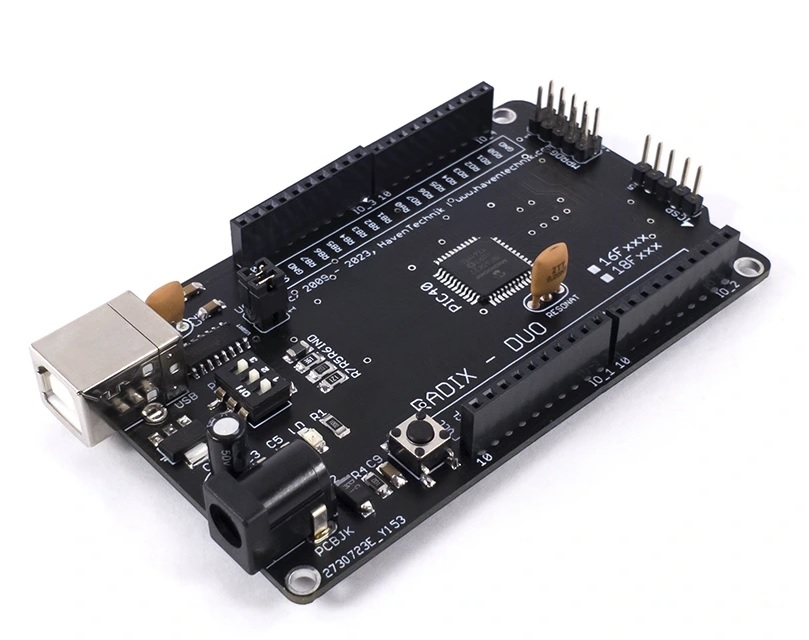

RADIX DUO  is a compact and versatile PIC development PCB, economized for size and portability. The PCB is capable of supporting devices from both the 16F and 18F devices. Supplied with the choice of a PIC16F887, PIC18F4520, PIC18F45K22, PIC18F46K40, the PCB delivers an efficient and effective development experience. The PCB includes USB UART (useful for bootloading), selectable power supply, ICSP header and all IO tracked to headers.

RADIX - DUO is ideal for use in many different types of projects from simple automation, to automotive to analogue applications. Enhance your development options by including the shield in your purchase. The devices available are also suitable for automotive applications.

RADIX  DUO |- General Specifications for the DUO Range
DC Jack YES
USB Powered Capable YES
Device Programming ICSP | USART Bootloader
3v3 | 5V0 YES
Input Voltage > 7Vdc | > 9 Vdc
Package 44 PIN TQFP, pre-populated
LED | Reset Button YES
Headers Ported PORTs A, B, C,D,E  tracked
Reccomended Device Recomended Device Family
USB UART V2 - CH340G Windows Driver Support
Purchase Options
Purchase from our store
RADIX DUO is bootloader capable, device dependant.
All currency in ZAR, South African Rands



RADIX DUO,- what is it?
RADIX DUO is a PIC Microcontroller development platform that allows the avid hobbiyst and professioal user to build applications. The PCB is designed to host the 44 PIN TQFP Package. This family of PIC devices is highly capable with many on board peripherals, digital IO, A2D, Serial coms, etc
Features . . .

  • PIC16F or PIC18F Microntroller
  • Jumper selectable PSU 3v3 | 5v0
  • USB-UART, self powered
  • Reset button
  • Power LED
  • All IO tracked to headers
  • ICSP header
  • MicroProg Header
Capabilities
RADIX-DUO is designed to cater to existing devices and families. The traditional devices for example the PIC16F887, PIC18F4520, PIC18F45K22 and recently the PIC18F46K40.The introduction of newer devices and families enhances the capabilities of the RADIX - DUO family. If you have a specific device that you need, please contacts us.
Deploy Applications
Embedded applications range from standalone systems which control a single element, to wired or wireless applications interconnected for reporting and monitoring. RADIX-DUO is an ideal, cost effective and well supported tool with an efficient tool chain that will assist in completing projects and getting products to market.
Product  Resources
Document Title REV Description
 Getting Started Gudie : Radix Duo REV 1 Overview document which outlines first steps to using the Radix Duo.
 CH340 Driver Current CH340 G Driver for windows based PCs
