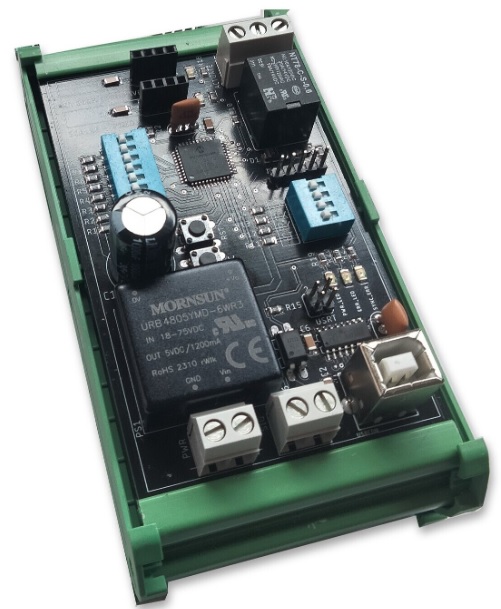

SCALAE CONTROL |- Versatile RF Link Module for IOT Automation
SCALAE-CONTROL
is a RF Link automation module enabling the remote control of a corresponding module. A transmission | receive topology, paired with a unique address enables the transmission module to activate the output of a corresponding receiving module. Applications: Used in the automation of power backup systems, where a control signal is used to activate a generator. The wireless link is ideal for short distance applications to reduce cabling requirements.
SCALAE Control |- General Specifications for the Control Range
Power In
DC
USB Powered Capable
NO
Device Programming
ICSP | USART Bootloader
Power Input
18 - 75Vdc
Operational Voltage
5Vdc
MCU Technology
44 PIN TQFP, PIC18F16F188xx family
LED | Reset Button
YES
Adress Range
8 BIT | 255 Addresses
Reccomended For
RF Link Applications
USB UART
V2 -
CH340G Windows Driver Support
Purchase Options
Options
Online Store
Contact Us
Product Catalogue
About Us
All currency in ZAR, South African Rands
SCALAE CONTROL,- what is it?
SCALAE-CONTROL
is a PIC Microcontroller based RF LINK module that is ideal for automation applications. Working in a paired module configuration, two units work together over a wireless, 100m link to actuate a device.
Features . . .
PIC16F
8 Bit address range | 255 Addresses
USB-UART, self powered
Reset button
Power LED
ICSP header
Capabilities
SCALE - CONTROL
is designed to cater to existing and new installations. Employing tried and tested RF Link technology, the module can be configured as either a send or recieve module for reliable communication in real world critical applications.
Deploy Applications
Embedded applications range from standalone systems which control a single element, to wired or wireless applications interconnected for reporting and monitoring.
SCALAE-CONTROL
is a cost effective and well supported systems integration tool.
Product Resources
Document Title
REV
Description
Getting Started Guide
REV 0
Online Documentation
