SCALAE SENSE  | ANALOG SIGNAL AUTOMATION UNIT

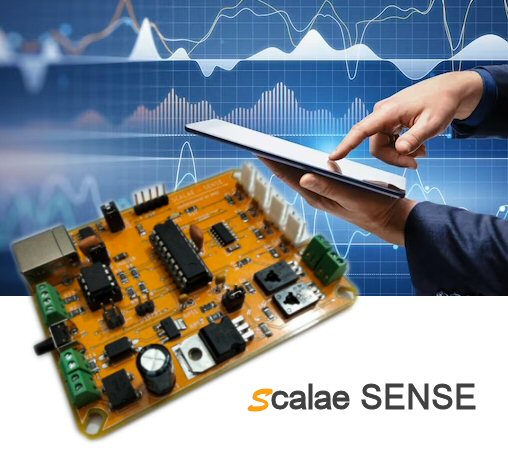

SCALAE - SENSE is a dedicated unit, specifically for analog sensory applications, and are capable of being networked. Based around an 8 BIT microcontroller, and with the LM324, an instrumentation operational amplifier the unit has four analog inputs, capable of basic, voltage follower styled analog sensory input.

Processing is provided by a PIC16F1827 and the unit is capable of joining an RS485 network of devices or using a point to point architecture for data reporting.


SCALAE SENSE  | SYSTEM SPECIFICATIONS
Specifications SCALAE
Input Voltage DC / AC > 15 VDC | < 20 VDC or > 15 VAC | < 20 VAC
Power Source Powered by either an AC (transformer) or a DC Power Source.
Device Programming ICSP | USART Bootloader *Device dependant
Internal Power Supply Split power source for 12Vdc external operation
5vdc for internal operational requirements
Package DIN Rail enclosure compatiable, or mountable
Device *
LED | Reset Button YES
Inputs
  •  Optically Isolated input | 12V
  •  4 Analog Sensor Inputs - LM324 Operational Amplifier
Outputs
  •  2 Common Emmiter Transistor Outputs
  • Serial Communications for data transfere
Communications
  • USB to Serial : CH340G
  • Serial RS232 to Serial RS485
Purchase
SCALAE - SENSE - is bootloader capable, device depdendent.
All currency in ZAR, South African Rands



SCALAE I - what is it?
SCALAE is a PIC Microcontroller based automation platform that allows the avid hobbiyst and professioal user to build real world applications. The unit is designed to support the PIC16F1827. This, the smallest in a  family of automation systems is highly capable with many on board peripherals, digital IO, A2D, Serial coms, etc
Features . . .

  • Internal PSU for Opto and operational needs
  • USB-UART
  • RS 485 (Shared on USB UART)
  • Internal ICSP Programming Header
  • Reset button
  • Power LED
Capabilities
SCALAE is designed to facilitate automated applications The compact design is suitable for small applications where a cost effective and realiable system is needed. LDMICRO is used to create the software which is then flashed to the device as per normal.
Industrialized Automated Applicationss
Embedded applications range from standalone systems which control a single element, to wired or wireless applications interconnected for reporting and monitoring. SCALAE are multipurpose, cost effective and well supported tool with an efwctive tool chain that will assist in completing projects and getting products to market.
Documentation Resources
Document Title REV Description
SCALAE -1 - Getting Started Guide 1 - Original Release Technical document which describes the SCALAE series, how to use the product and basic technical information.
