Introduction

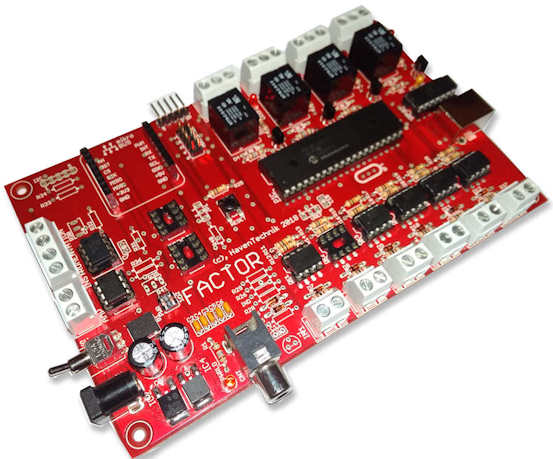

Factor is a systems solution that combines industrial level electrical isolation along with the required sensor integration. While factor comes with a PIC18F45K22, the 16F and 18F families share a similar pinout and this enables
products and systems to be PIN compatiable. This allows for code to be deployed from a smaller device in pin count and features to a bigger device such as the PIC18F45K22.
You can replace the PIC18F45K22 with your device of choice
which may be a 16Fxx or 18Fxx device.
NOTE: The feaures below are a subset, please refer to the Microchip datasheet for more details.
The Feature Set
- Device: #PIC18F45K22
- Dual Power Supplies
- 3v3 and 5V0
- Jumper setting configures the PCB voltage
- PCB is voltage polarity reversal protected
- Serial Communications
- PCB Connector: USB, Type B (Printer USB Cable)
- USB ->USART bridge: FT232
- Tracked to RC6 | RC7
- Supports Bootloader
- Programming Methods
- ICSP interface, compatible with PICKIT 3 & PICKIT 4
- Bootloader
- Uses USB to USART interface
- NOTE: Bootloader installed
- Software
- Mikroe Compiler or other suitable type
- Any Microchip compatiable software with produces a hex file
- Hardware
- The PIC is supported by a robust platform enabling idustrial level or similar integration
- I/O are tracked to peripherals for ease of use.
Down to Code
Shown below is a simple code sample for a Hello World project example. The code demonstartes how to configure the PIC, run through a relay
test and configure the LM35 in the VREF slot.
/*
Sample Code (c) 20201 HavenTechnik
OBJECTIVE: Tests elemements of Factor
*/
bit SysSet;
bit Mikro;
const unsigned long baud_rate [7]={9600,14400,19200,38400,56000,57600,115200};
unsigned char ch;
unsigned int adc_rd;
char *text;
long tlong;
char *tempc = "000.0";
int i;
void LM35();
void flash(){
//LATB.B2 = ~LATB.B2;
Delay_MS(1000);
i=i++;
if (i==6)i=0;
}
void SystemConfig(){
SysSet = 1;
// Ports
TRISA = 0x04;
//A2D Disable
ANSELA = 0x04;
ANSELB = 0;
ANSELC = 0;
//ANSELD = 0;
TRISB.B2 = 0;
TRISB.B3 = 0;
TRISB.B4 = 0;
TRISB.B5 = 0;
PORTB = 0x00;
/*
UART 1 Initialise for UART 1 for admin
*/
UART1_Init(baud_rate[6]);
Delay_US(100);
/*
UART 2, Dedicated to Mikrobus
*/
if(Mikro ==1)
{
UART2_Init(115200);
Delay_US(100);
}
INTCON = 0; // disable all interrupts
}
void LM35(){
adc_rd = ADC_read(2); // get ADC value from 2nd channel
//LCD_Out(2,1,text); // print string a on LCD, 2nd row, 1st column
tlong = (long)adc_rd * 5000; // covert adc reading to milivolts
tlong = tlong / 1023; // 0..1023 -> 0-5000mV
ch = tlong / 1000; // extract volts digit
tempc[1] = ch+48;
ch = (tlong / 100) % 10; // extract 0.1 volts digit
//LCD_Chr_CP(48+ch); // write ASCII digit at cursor point
tempc[2] = ch+48;
ch = (tlong / 10) % 10; // extract 0.01 volts digit
tempc[3] = ch+48;
//ch = tlong % 10; // extract 0.001 volts digit
tempc[4] = ch+48;
UART1_Write(tempc[2]);
UART1_Write(tempc[3]);
UART1_Write_Text(".");
UART1_Write(tempc[4]);
UART1_Write(13);
UART1_Write(10);
Delay_ms(100);
}
void main() {
SysSet = 0;
i=0;
SystemConfig();
while(1){
//if (!SysSet){
//}
//LM35();
// If the input goes low, then the Relay Flashes
flash();
switch(i)
{
case 1: LATB.B2 = 1;break;
case 2: LATB.B2 = 0;LATB.B3 = 1;break;
case 3: LATB.B3 = 0;LATB.B4 = 1;break;
case 4: LATB.B4 = 0;LATB.B5 =1;break;
case 5: LATB.B5 = 0;
}
}
}
Why use Factor. . .
Factor utilizes one of Microchip's powerfull, energy efficient and extensbible devices. Prepopulated on Factor, it's a power up and play solution capable of running from a USB cable.
The Device itself offers many itegrated peripherals namely: USART, I2C, SPI, PWM, CCP timers and so on. That's allot of techno jargon, but it equates to a compact purchase with many open doors for
ongoing development; the device will allow you to grow your project to its full potential.
